Strong Welded Mesh Fence with Uniform Mesh Size and Flat Surface Suitable for Heavy Duty Industrial and Agricultural Uses

Miejsce pochodzenia	Chiny
Nazwa handlowa	TT
Orzecznictwo	ISO9001
Numer modelu	Dostosowane do Twoich potrzeb
Minimalne zamówienie	10szt
Cena	USD 1-2 /SET
Szczegóły pakowania	Palety w kontenerach lub na zamówienie
Czas dostawy	5-8 dni roboczych
Zasady płatności	L/C, D/A, D/P, T/T, Western Union
Możliwość Supply	500 mkw. na dzień

Szczegóły Produktu

Podkreślić

heavy duty welded mesh fence

industrial welded mesh fencing

agricultural flat surface mesh fence

Zostaw wiadomość

opis produktu

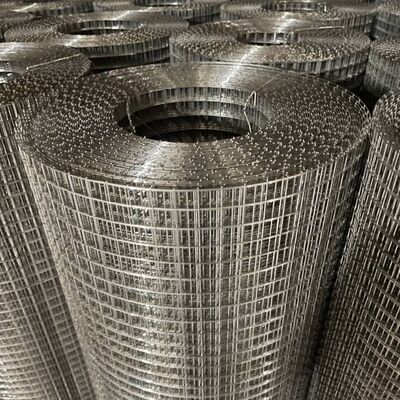

Strong Welded Mesh Fence with Uniform Mesh Size and Flat Surface Suitable for Heavy Duty Industrial and Agricultural Uses

Welded wire mesh is a high-stability mesh product fabricated by spot welding or continuous welding of high-quality metal wires into a regular grid structure. It is characterized by firm welding points, flat mesh surface, uniform mesh size, and excellent mechanical strength, which enables it to be widely applied in construction, agriculture, industry, security and other fields. This document systematically elaborates on its core specifications, material options, color variations, application scenarios and key technical parameters.

1. Specifications

The specifications of welded wire mesh are highly flexible and customizable to meet the diverse needs of different application scenarios. The core specification parameters include mesh size, wire diameter, mesh width and mesh length, as detailed below:

Mesh Size: The standard mesh size ranges from 1.27mm×1.27mm (fine mesh) to 100mm×100mm (coarse mesh). Fine mesh is suitable for filtering, screening and precision protection, while coarse mesh is applicable to general protection, fencing and reinforcement scenarios. The mesh size can be flexibly adjusted according to actual requirements.
Wire Diameter: The wire diameter ranges from 0.5mm to 4.0mm. Thin wires (0.5mm-1.2mm) are mainly used for fine filtering, decorative purposes and light-duty protection; thick wires (1.2mm-4.0mm) are designed for heavy-duty reinforcement, industrial protection and load-bearing scenarios.
Mesh Width and Length: The standard width of the mesh panel is 1000mm-2000mm, and the standard length is 2000mm-6000mm. Customized width and length can be provided according to customer orders to adapt to specific installation and application requirements.

2. Material Options

The material selection of welded wire mesh is closely related to its service environment, performance requirements and service life. The main optional materials are as follows, each with unique characteristics and applicable scenarios:

Low Carbon Steel Wire: As the most commonly used basic material, it has the advantages of high tensile strength, good ductility and cost-effectiveness. It is suitable for general construction reinforcement, ordinary fencing, agricultural breeding and other scenarios with no special corrosion resistance requirements.
Stainless Steel Wire (304/316): It possesses excellent corrosion resistance, rust resistance and high-temperature resistance, and is not easily affected by moisture, chemicals, salt spray and other harsh environments. It is widely used in chemical plants, food processing facilities, coastal areas, medical equipment and other fields.
Galvanized Steel Wire: Based on low carbon steel wire, it is treated with hot-dip galvanizing or electro-galvanizing, which significantly improves its corrosion resistance and extends its service life. It is commonly used in outdoor fencing, agricultural greenhouses, transportation facilities and other outdoor scenarios.
PVC-Coated Steel Wire: On the basis of galvanized steel wire, a layer of PVC (polyvinyl chloride) is coated on the surface, which further enhances corrosion resistance and improves the aesthetic performance. It is suitable for environmental greening, landscape engineering, residential fencing and other scenarios with high appearance requirements.

3. Color Variations

The color of welded wire mesh is mainly determined by its surface treatment process, which not only affects the appearance of the product but also enhances its corrosion resistance and service life. Common color options are as follows:

Galvanized Color: After hot-dip galvanizing or electro-galvanizing treatment, the surface presents a uniform and bright silver-gray, which is simple and practical, and has good corrosion resistance. It is the most commonly used color for welded wire mesh.
PVC-Coated Color: The PVC coating can be customized into various colors, including green, black, gray, blue, brown, etc. Green is widely used in agricultural greenhouses and landscape engineering to blend with the surrounding natural environment; black and gray are suitable for industrial fencing and construction reinforcement.
Natural Color: The original color of stainless steel wire is silver, which has a bright luster and excellent corrosion resistance, suitable for scenarios with high aesthetic and corrosion resistance requirements.

4. Application Scenarios

Due to its firm structure, uniform mesh and excellent performance, welded wire mesh has a wide range of applications, covering construction, agriculture, industry, security and other fields:

Construction Field: Used for wall reinforcement, floor reinforcement, plastering mesh, exterior wall insulation mesh, etc. It can enhance the structural strength of buildings and prevent wall cracking.
Agricultural Field: Applied to greenhouse shelves, animal breeding nets, crop protection nets, and orchard fencing. It is corrosion-resistant and durable, adapting to the outdoor agricultural environment.
Industrial Field: Used for machine guards, equipment protection nets, filter screens, and separation nets. It can effectively protect equipment and operators, and realize functions such as filtration and separation.
Security Field: Used as fencing for residential areas, factories, highways, railways, and airports, as well as anti-theft nets for doors and windows. It has strong anti-climbing and anti-damage performance, providing reliable security protection.
Other Fields: Used for decorative crafts, furniture accessories, kitchen filters, and temporary protection in construction sites, with strong versatility.

5. Key Technical Parameters

Parameter Name	Specification Range	Unit	Description
Mesh Size	1.27×1.27 - 100×100	mm	Adjustable according to filtering, protection or reinforcement needs
Wire Diameter	0.5 - 4.0	mm	Determines the strength and application scenario of the mesh
Mesh Width	1000 - 2000	mm	Standard width, customizable according to customer requirements
Mesh Length	2000 - 6000	mm	Standard length, customizable according to customer requirements
Tensile Strength	≥350	MPa	Standard value for low carbon steel wire; higher for stainless steel wire
Zinc Coating Thickness	≥80	μm	Affects the corrosion resistance of galvanized steel wire
Surface Treatment	Hot-dip galvanizing, electro-galvanizing, PVC coating, natural finish	-	Determines the product's corrosion resistance and service life
Service Life	10 - 40	Years	Depends on the selected material and surface treatment process

Our welded wire mesh products are produced in strict accordance with national and industrial standards, with strict quality control throughout the production process to ensure stable product performance and reliable quality. We also provide personalized customization services, including customized specifications, materials, colors and surface treatments, to fully meet the diverse needs of customers in different fields.

|Frequently Asked Questions

Q: Are you trading company or manufacturer?

A: We are manufacturer.

Q: How long is your delivery time?

A: Generally 5-10 days for in-stock items, or 15-20 days for out-of-stock items depending on quantity.

Q: Do you provide samples? Is it free or extra?

A: Yes, we offer samples but customers must cover the cost and freight.

Q: What are your payment terms?

A: For orders ≤1000USD, 100% in advance. For orders ≥1000USD, 50% T/T in advance with balance before shipment.

For additional questions, please feel free to contact us.
